Lifting the veil on the black hole at the heart of our Galaxy

Including the powerful ALMA into an array of telescopes for the first time, astronomers have found that the emission from the supermassive black hole Sagittarius A* (Sgr A*) at the center of our Galaxy comes from a smaller region than previously thought. This may indicate that a radio jet from Sgr A* is pointed almost toward us. The paper, led by the Nijmegen PhD student Sara Issaoun, is published in the Astrophysical Journal.

So far, a foggy cloud of hot gas has prevented us from making sharp images of the supermassive black hole Sgr A* and causing doubt on its true nature.  Astronomers have now included for the first time the powerful ALMA telescope in northern Chile into a global network of radio telescopes to peer through this fog, but the source keeps surprising them: its emission region is so small that the source may actually have to point directly at us.

Observing at a frequency of 86 GHz with the technique of Very Long Baseline Interferometry (VLBI), which combines many telescopes to form a virtual telescope the size of the Earth, the team succeeded in mapping out the exact properties of the light scattering blocking our view of Sgr A*. The removal of most of the scattering effects has produced a first image of the surroundings of the black hole.

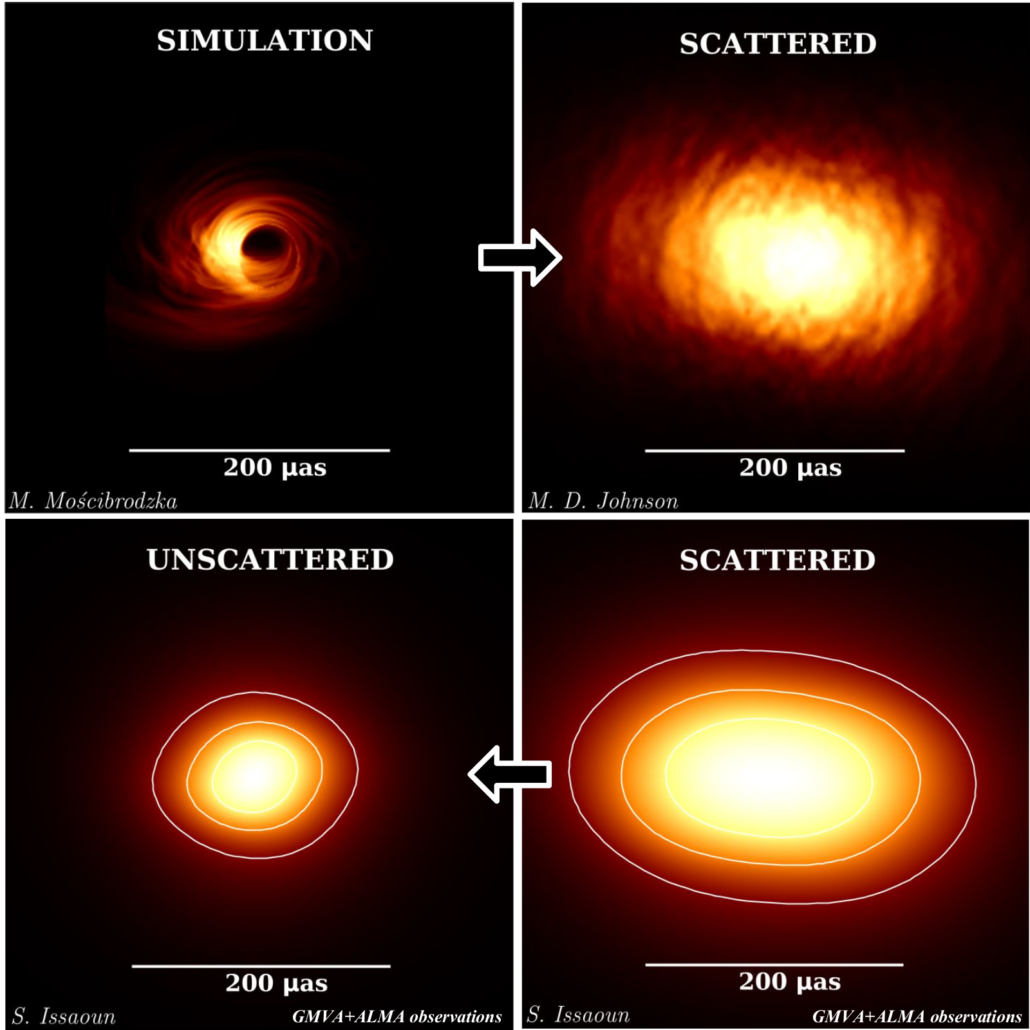

Top left: simulation of Sgr A* at 86 GHz. Top right: simulation with added effects of scattering. Bottom right: scattered image from the observations, this is how we see Sgr A* on the sky. Bottom left: the unscattered image, after removing the effects of scattering in our line of sight, this is how Sgr A* really looks.  Credit: S. Issaoun, M. Mościbrodzka, Radboud University/ M. D. Johnson, CfA

The high quality of the unscattered image has allowed the team to constrain theoretical models for the gas around Sgr A*. The bulk of the radio emission is coming from a mere 300 millionth of a degree, and the source has a symmetrical morphology. “This may indicate that the radio emission is produced in a disk of infalling gas rather than by a radio jet,” explains Issaoun, who has tested several computer models against the data. “However, that would make Sgr A* an exception compared to other radio emitting black holes. The alternative could be that the radio jet is pointing almost at us.”

Issaoun’s supervisor Heino Falcke, Professor of Radio Astronomy at Radboud University, calls this statement very unusual, but he also no longer rules it out. Last year, Falcke would have considered this a contrived model, but recently the GRAVITY team came to a similar conclusion using ESO’s Very Large Telescope Interferometer of optical telescopes and an independent technique. “Maybe this is true after all”, concludes Falcke, “and we are looking at this beast from a very special vantage point.”

Supermassive black holes are common in the centers of galaxies and may generate the most energetic phenomena in the known universe. It is believed that, around these black holes, matter falls in a rotating disk and part of this matter is expelled in opposite directions along two narrow beams, called jets, at speeds close to the speed of light, which typically produces a lot of radio light. Whether the radio emission we see from Sgr A* comes from the infalling gas or the outflowing jet is a matter of intense debate.

Sgr A* is the nearest supermassive black hole and ‘weighs’ about 4 million solar masses. Its apparentsize on the sky is less than a 100 millionth degree, which corresponds to the size of a tennis ball on the moon as seen from the Earth. To measure this, the technique of VLBI is required. The resolution achieved with VLBI is further increased by the observation frequency. The highest frequency to date to use VLBI is 230 GHz. “The first observations of Sgr A* at 86 GHz date from 26 years ago, with only a handful of telescopes. Over the years, the quality of the data has improved steadily as more telescopes join,” says J. Anton Zensus, director of the Max Planck Institute for Radio Astronomy.

The research of Issaoun and international colleagues describes the first observations at 86 GHz in which ALMA also participated, by far the most sensitive telescope at this frequency. ALMA became part of the Global Millimeter VLBI Array (GMVA) in April 2017. The participation of ALMA, made possible by the ALMA Phasing Project effort, has been decisive for the success of this project.

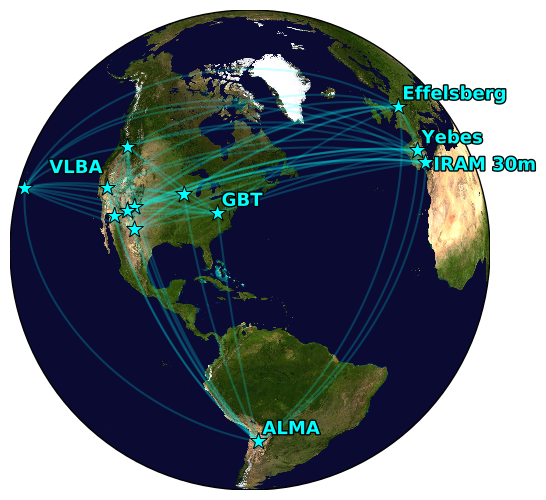

The Global Millimeter VLBI Array, joined by ALMA. Credit: S. Issaoun, Radboud University/ D. Pesce, CfA

“Sgr A* is located in the southern sky, thus the participation of ALMA is important not only because of its sensitivity but also because of its location in the southern hemisphere,” says Ciriaco Goddi, from the European ALMA Regional Center node in the Netherlands (ALLEGRO, Leiden Observatory). In addition to ALMA, twelve telescopes in North America and Europe also participated in the network. The resolution achieved was twice as large as in previous observations at this frequency and produced the first image of Sgr A* that iscompletely free of interstellar scattering (an effect caused by density irregularities in the ionized material along the line of sight between Sgr A* and the Earth).

To remove the scattering and obtain the image, the team used a technique developed by Michael Johnson of the Harvard-Smithsonian Center for Astrophysics (CfA). “Even though scattering blurs and distorts the image of Sgr A*, the incredible resolution of these observations allowed us to pin down the exact properties of the scattering,”says Johnson.“We could then remove most of the effects from scattering and begin to see what things look like near the black hole. The great news is that these observations show that scattering will not prevent the Event Horizon Telescope from seeing a black hole shadow at 230 GHz, if there’s one to be seen.”

Future studies at different wavelengths will provide complementary information and further observational constraints for this source, which holds the key to a better understanding of black holes, the most exotic objects in the known universe.

—————————————————————————————————-

More information? Contact:

Article:

The Size, Shape, and Scattering of Sagittarius A * at 86 GHz: First VLBI with ALMA: Issaoun, M. D. Johnson, L. Blackburn, C. D. Brinkerink, M. Mościbrodzka, A. Chael, C. Goddi, I. Martí-Vidal, J. Wagner, S. S. Doeleman, H. Falcke, T. P. Krichbaum, K. Akiyama, U. Bach, K. L. Bouman, G. C. Bower, A. Broderick, I. Cho, G. Crew, J. Dexter, V. Fish, R. Gold, J. L. Gómez, K. Hada, A. Hernández-Gómez, M. Janßen M. Kino, M. Kramer, L. Loinard, R.-S. Lu, S. Markoff, D. P. Marrone, L. D. Matthews, J. M. Moran, C. Müller, F. Roelofs, E. Ros, H. Rottmann, S. Sanchez, R. P. J. Tilanus, P. de Vicente, M. Wielgus, J. A. Zensus and G.-Y. Zhao.

Article reference: Issaoun, S., et al. 2019, ApJ, 871, 30 (https://doi.org/10.3847/1538-4357/aaf732).

Arxiv link: https://arxiv.org/abs/1901.06226

Astronomers from the BlackHoleCam team led and worked on the research.

The research team is also part of the EHT consortium, an international partnership of thirteen institutes from ten countries: Germany, the Netherlands, France & Spain (via IRAM), USA, Mexico, Japan, Taiwan, Canada and China (via EAO). http://www.eventhorizontelescope.org/

The participation of ALMA through the ALMA Phasing Project has been decisive for the success of this project. https://www.almaobservatory.org/

The data were correlated at the Max Planck Institute for Radioastronomy (MPIfR). Data analysis software was developed at the MIT Haystack Observatory and the Smithsonian Astrophysical Observatory.

This work is supported by the ERC Synergy Grant “BlackHoleCam: Imaging the Event Horizon of Black Holes”, Grant 610058. The National Science Foundation (AST-1126433, AST-1614868, AST-1716536) and the Gordon and Betty Moore Foundation (GBMF-5278) have provided financial support for this work. This work was supported in part by the Black Hole Initiative at Harvard University, which is supported by a grant from the John Templeton Foundation. The GMVA is partially supported by the European Union’s Horizon 2020 research and innovation programme under grant agreement No 730562 (RadioNet).

This press release was originally posted at https://www.ru.nl/astrophysics/news-agenda/news/news-ru/lifting-veil-black-hole-heart-our-galaxy/

/by

BlackHoleCam scientists build a Virtual Reality simulation of a supermassive black hole

At the centre of our own galaxy there is a black hole, called Sagittarius A*. In anticipation of the first actual photograph of a black hole, an international project  involving astronomers of BlackHoleCam, Jordy Davelaar and colleagues have built a virtual reality (VR) simulation of the phenomenon. The VR simulation was published in Computational Astrophysics and Cosmology on November 19th. We asked him two questions about this simulation.

Credits: Jordy Davelaar, Thomas Bronzwaer, Daniel Kok, Ziri Younsi, Monika Moscibrodzka and Heino Falcke. Music: Thomas Bronzwaer

What exactly are we seeing in the simulation?
‘In the simulation you move around the black hole at the centre of our galaxy. The light you see comes from matter that disappears into the black hole in a vortex-like way; due to the extreme conditions it becomes a plasma that starts to glow. This light is then deflected and deformed by the powerful gravity of the black hole. Some of the plasma is ejected away from the black hole in a jet stream at very high velocity. You can see the path that a particle could take in such a plasma flow; it moves continually inwards in a spiral trajectory until it is ejected in the jet stream.’

Why do you think Sagittarius A* looks like this?
‘The purpose of the simulation is to make the most realistic possible representation of the direct environment of Sagittarius A*. The camera calculates at every point what the environment would look like if we were able to see radio-emissions. To do this we used models that were developed in part by Nijmegen astronomers and radio telescope observations.

In our coding for the simulation, we used Einstein’s General Theory of Relativity. This enabled us to visualize all the effects you would experience when you move around a black hole, such as light deflection, the distortion of your field of view due to your speed. This provides the most realistic possible experience of what we think this environment is like. The simulation is unique and is even more realistic than the visualizations in the film “Interstellar”.’

Publication
Observing Supermassive Black Holes In Virtual Reality, Computational Astrophysics and Cosmology, Jordy Davelaar, Thomas Bronzwaer, Daniel Kok, Ziri Younsi, Monika Moscibrodzka and Heino Falcke. https://comp-astrophys-cosmol.springeropen.com/articles/10.1186/s40668-018-0023-7

The research was made possible by the ERC Synergy grant titled ‘BlackHoleCam’ given to Heino Falcke (Radboud University), M. Kramer (Max Planck Institute for Radioastronomy), L. Rezzolla (Goethe University Frankfurt).

More information? Please contact
Jordy Davelaar, j.davelaar@astro.ru.nl, +31 24 365 3206 or +31 6 10 00 39 65
Science communication Radboud University, +31 24 361 6000, media@ru.nl.
Radboud University stimulates its leading research areas. Astrophysics is one of them.

This press release was originally posted at https://www.ru.nl/english/news-agenda/news/vm/imapp/astrophysics/2018/flying-past-black-hole-simulator/

/by

First Successful Test of Einstein’s General Relativity Near Supermassive Black Hole with GRAVITY.

Measurement of the “Gravitational Redshift” in the Orbit of the Star S2 around the Supermassive Black Hole at the center of the Milky Way with GRAVITY

Observations made with ESO’s Very Large Telescope have for the first time revealed the effects predicted by Einstein’s general relativity on the motion of a star passing through the extreme gravitational field near the supermassive black hole in the centre of the Milky Way. This long-sought result represents the climax of a 26-year-long observation campaign using ESO’s telescopes in Chile.

eso1825 — Science Release –

Obscured by thick clouds of absorbing dust, the closest supermassive black hole to the Earth lies 26 000 light-years away at the centre of the Milky Way. This gravitational monster, which has a mass four million times that of the Sun, is surrounded by a small group of stars orbiting around it at high speed. This extreme environment — the strongest gravitational field in our galaxy — makes it the perfect place to explore gravitational physics, and particularly to test Einstein’s general theory of relativity.

New infrared observations from the exquisitely sensitive GRAVITY [1], SINFONI and NACO instruments on ESO’s Very Large Telescope (VLT) have now allowed astronomers to follow one of these stars, called S2, as it passed very close to the black hole during May 2018. At the closest point this star was at a distance of less than 20 billion kilometres from the black hole and moving at a speed in excess of 25 million kilometres per hour — almost three percent of the speed of light [2].

The team compared the position and velocity measurements from GRAVITY and SINFONI respectively, along with previous observations of S2 using other instruments, with the predictions of Newtonian gravity, general relativity and other theories of gravity. The new results are inconsistent with Newtonian predictions and in excellent agreement with the predictions of general relativity.

These extremely precise measurements were made by an international team led by Reinhard Genzel of the Max Planck Institute for Extraterrestrial Physics (MPE) in Garching, Germany, in conjunction with collaborators around the world, at the Paris Observatory–PSL, the Université Grenoble Alpes, CNRS, the Max Planck Institute for Astronomy, the University of Cologne, the Portuguese CENTRA – Centro de Astrofisica e Gravitaçãoand ESO. The observations are the culmination of a 26-year series of ever-more-precise observations of the centre of the Milky Way using ESO instruments [3].

“This is the second time that we have observed the close passage of S2 around the black hole in our galactic centre. But this time, because of much improved instrumentation, we were able to observe the star with unprecedented resolution,” explains Genzel. “We have been preparing intensely for this event over several years, as we wanted to make the most of this unique opportunity to observe general relativistic effects.”

The new measurements clearly reveal an effect called gravitational redshift. Light from the star is stretched to longer wavelengths by the very strong gravitational field of the black hole. And the change in the wavelength of light from S2 agrees precisely with that predicted by Einstein’s theory of general relativity. This is the first time that this deviation from the predictions of the simpler Newtonian theory of gravity has been observed in the motion of a star around a supermassive black hole.

The team used SINFONI to measure the velocity of S2 towards and away from Earth and the GRAVITY instrument in the VLT Interferometer (VLTI) to make extraordinarily precise measurements of the changing position of S2 in order to define the shape of its orbit. GRAVITY creates such sharp images that it can reveal the motion of the star from night to night as it passes close to the black hole — 26 000 light-years from Earth.

“Our first observations of S2 with GRAVITY, about two years ago, already showed that we would have the ideal black hole laboratory,” adds Frank Eisenhauer (MPE), Principal Investigator of GRAVITY and the SINFONI spectrograph. “During the close passage, we could even detect the faint glow around the black hole on most of the images, which allowed us to precisely follow the star on its orbit, ultimately leading to the detection of the gravitational redshift in the spectrum of S2.”

More than one hundred years after he published his paper setting out the equations of general relativity, Einstein has been proved right once more — in a much more extreme laboratory than he could have possibly imagined!

Françoise Delplancke, head of the System Engineering Department at ESO, explains the significance of the observations: “Here in the Solar System we can only test the laws of physics now and under certain circumstances. So it’s very important in astronomy to also check that those laws are still valid where the gravitational fields are very much stronger.”

Continuing observations are expected to reveal another relativistic effect very soon — a small rotation of the star’s orbit, known as Schwarzschild precession — as S2 moves away from the black hole.

Xavier Barcons, ESO’s Director General, concludes: “ESO has worked with Reinhard Genzel and his team and collaborators in the ESO Member States for over a quarter of a century. It was a huge challenge to develop the uniquely powerful instruments needed to make these very delicate measurements and to deploy them at the VLT in Paranal. The discovery announced today is the very exciting result of a remarkable partnership.”

Originally published in eso1825 — Science Release –

/by

ERC has published a video about BlackHoleCam project

The European Research Council has published a video about the BlackHoleCam project featuring the three Principal Investigators: Heino Falcke, Michael Kramer and Luciano Rezzolla.

In case of any questions, please contact Katharina Königstein, Radboud University.
